Quatro QB Towel Warmers

Bathroom Radiators

One of the latest models. The brilliant Quatro QB towel warmer is designed following the most recent design trends of the Europe markets. Round tubes have been replaced by elements with rectangular section, bent into curve smoothly transforming into collector curve.

Two 1/2" connection with right hand thread at the bottom
Equipped with air bleeder & set of brackets
Thermostatic valve included
Maximum working pressure is 4 bars (400kpa)
Available in silver finish

* 10 Year Warranty

Quatro QB Heated Towel Rails

Designed using the Latest Design Trends of Western Europe.

Available Colour & Finish

Silver

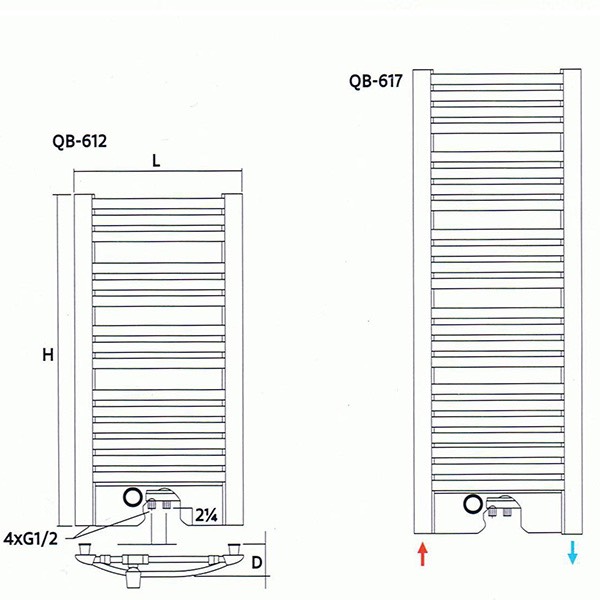

Technical Specification:
Model	Width L (inch)	Height H (inch)	Depth D (inch)	Connection Distance C (inch)	Connection Diameter (inch)	Weight (lb)	Heat Output
Model	Width L (inch)	Height H (inch)	Depth D (inch)	Connection Distance C (inch)	Connection Diameter (inch)	Weight (lb)	BTU 140°F	BTU 160°F
QB-612	23 1/2	46 1/2	4 1/4	2	1/2	35	2298	1655
QB-617	23 1/2	66 1/2	4 1/4	2	1/2	50	3427	2467
