Radiator Heating

Plan Compact Radiators

The PLAN COMPACT is a sleek and contemporary panel radiator. It has a beautiful lustrous finish, which makes it a stylish alternative to standard panel radiators and combines with the great performance you would expect from a PURMO product.

  • Made from high quality, cold rolled DC01 steel
  • Powder paint
  • Equipped with air bleeder & set of brackets
  • Maximum working pressure is 10 bars (145psi)
  • Maximum hot water temperature 110°C / 230°F

*   10 Year Warranty

*   Special Order 8 - 10 weeks

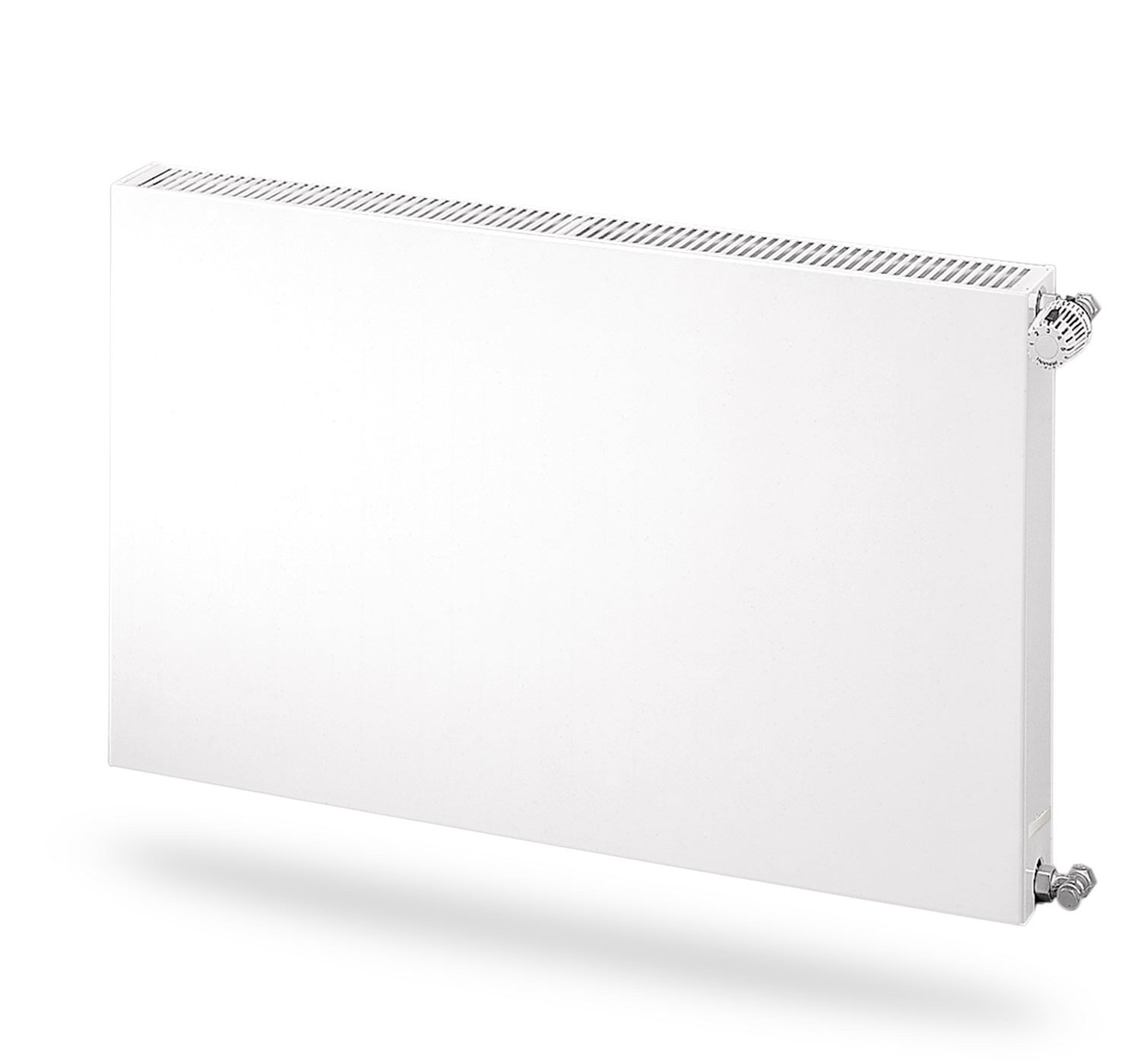

Purmo Plan Compact Home Radiator

Purmo Plan Compact

The outstanding characteristic of the Plan Compact is its stylish
flat front with lucent lamination, which consists of attached top
and side panels. These cover the Plan Compact in such a way
that no overlapping corners can be seen from the front.

Available Colour & Finish

RAL 9016




Technical Specification:

Height (inch) 12 18 24 36
  PP11 PP22 PP33 PP11 PP22 PP33 PP11 PP22 PP33 PP11 PP22 PP33
Width (inch) BTU 140°F BTU 140°F BTU 140°F BTU 140°F
24 867 1522 2044 1386 2356 3137 1612 2692 3576 2192 3642 4802
28 1011 1777 2384 1617 2747 3661 1879 3145 4170 2557 4250 5603
32 1154 2030 2726 1668 2838 3781 2149 3593 4767 2922 4858 6403
36 1299 2285 3065 2079 3535 4708 2416 4041 5361 3286 5462 7204
39 1443 2538 3406 2310 3925 5231 2686 4695 5958 3651 6070 8004
43 1588 2788 3748 2294 3903 5199 2953 4941 6555 4016 6678 8804
47 1733 3043 4087 2772 4709 6278 3224 5389 8340 4381 7286 9605
55 2080 3657 4912 3232 5497 7325 3761 6265 8340 5114 8499 11206
63 2310 4057 5450 3695 6281 8369 4298 7134 9534 5843 9712 12806
71 2598 4565 6133 4159 7066 9415 4835 8081 10725 6573 10928 14407
Purmo Plan Compact Home Radiator Specifications

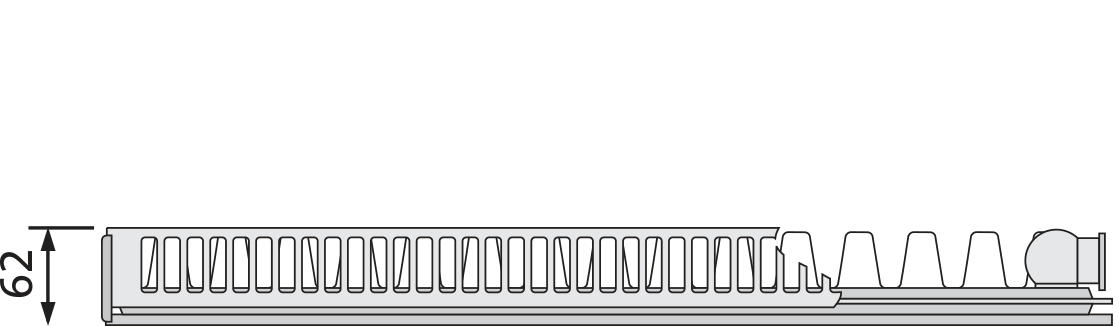

Type 11

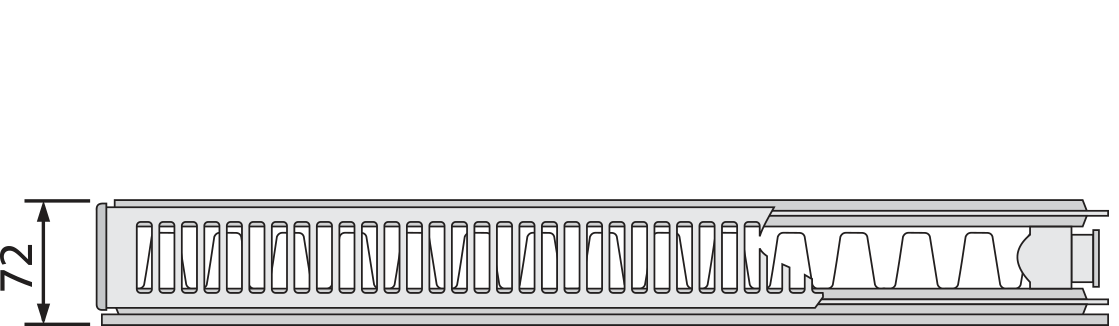

Type 21s

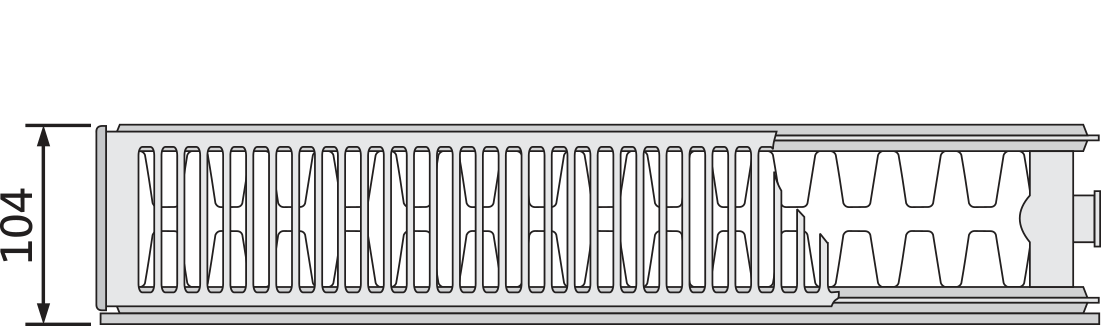

Type 22

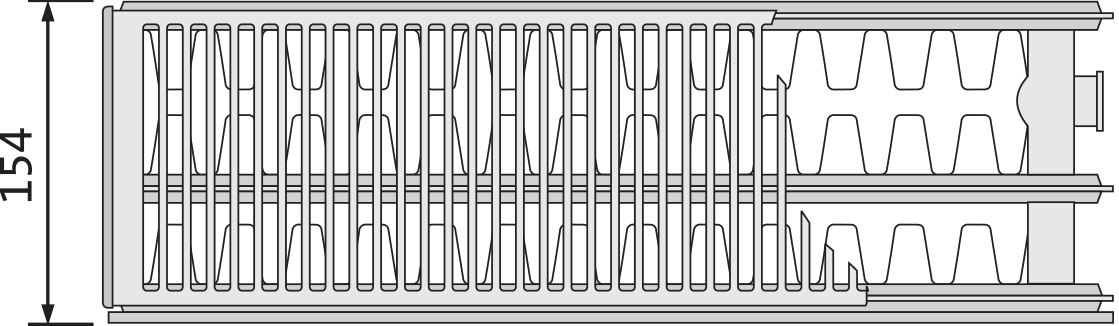

Type 33

Type 11, Type 21s, Type 22, Type 33




To convert from milimeters to inches divide the milimetes by 2.54 or CLICK HERE
